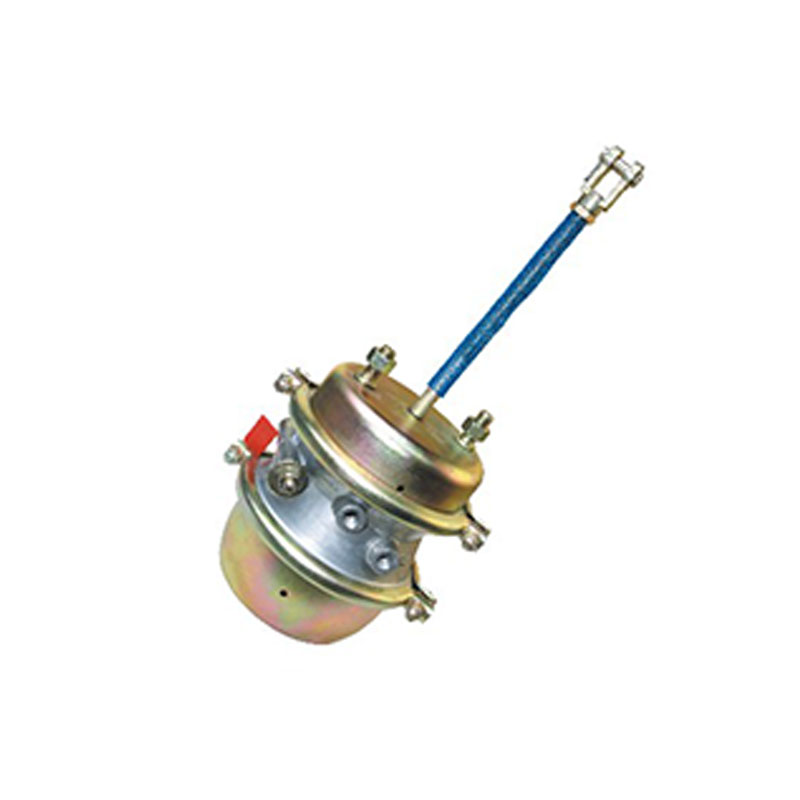

DX-80048-T3030 brake air chamber (American)

Performance parameters: 1. Maximum working pressure: 1.3MPa; 2. Rated working pressure: 1.0MPa; 3. Operating temperature range: -40℃～80℃; 4. Brake chamber specifications: T30/30; 5. Push rod stroke ≥64mm.

Dimension parameters: 1. Installation size: 120.7±0.3; 2. Mounting exposed size of the connecting fork: 220±3; 3. Thread of the 11-port of the driving cavity: NPT3/8; Thread of the 12-port of the parking cavity: NPT3/8.
