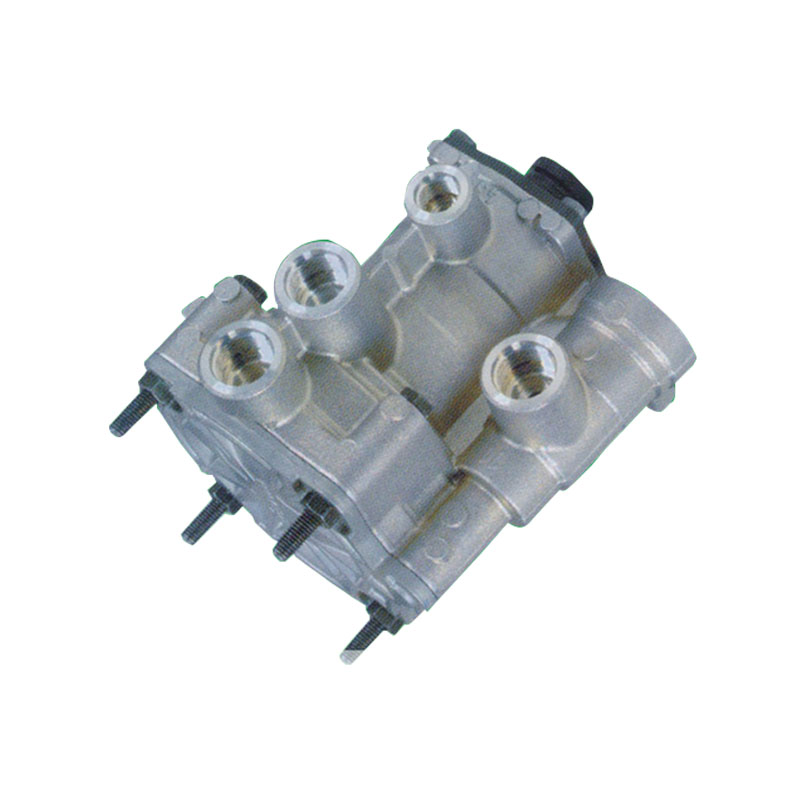

Performance parameters: 1. Maximum working pressure: 3MPa; 2. Rated working pressure: 1.0MPa; 3. Working temperature range: -40°C to 80°C; 4. The amount of air outlet port 22 relative to the control port 41 is ≥20KPa.
Dimension parameters: 1. Installation size: 2-85±1; 2. Inlet 11 port thread: M22×1.5-6HVOSS; Outlet 12, 22 port thread: 2-M22×1.5-6HVOSS; Control 41, 42 port thread: 2-M22×1.5-6H VOSS; Control 43-port thread: M16×1.5-6H VOSS.
