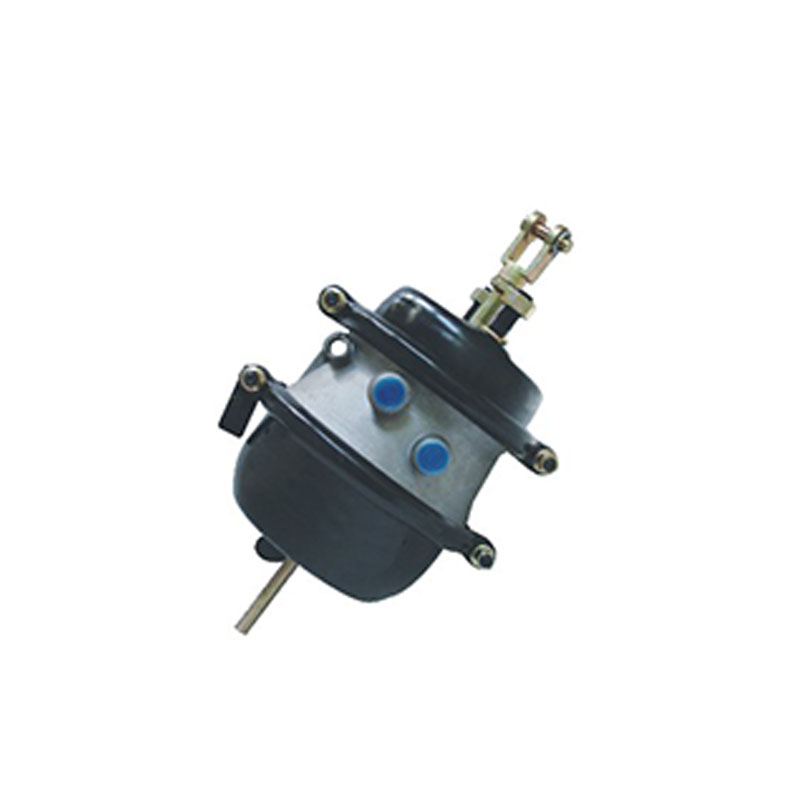

DX-80049-2-2430 brake air chamber

Performance parameters: 1. Maximum working pressure: 1.3MPa; 2. Rated working pressure: 1.0MPa; 3. Operating temperature range: -40℃～80℃; 4. Brake chamber specifications: T24/30; 5. Push rod stroke ≥64mm.

Dimension parameters: 1. Installation size: 120.7±0.3; 2. Mounting exposed size of the connecting fork: 80±3; 3. 11-port thread of the driving cavity: NPT3/8; 12-port thread of the parking cavity: NPT3/8.
