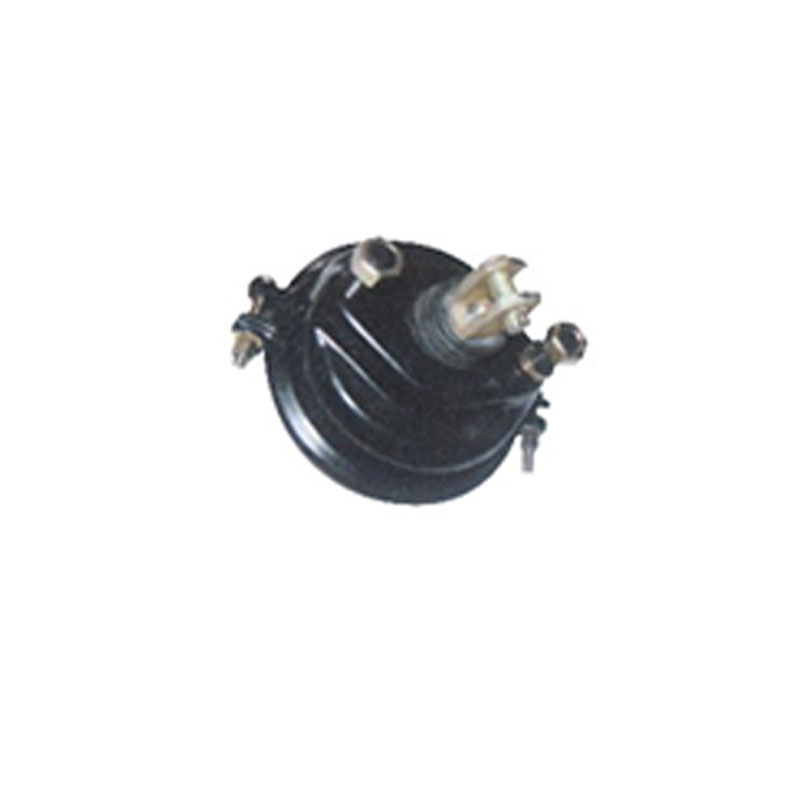

DX-80050-Steyr front sub-cylinder

Performance parameters: 1. Maximum working pressure: 1.3MPa; 2. Rated working pressure: 1.0MPa; 3. Operating temperature range: -40℃～80℃; 4. Brake chamber specification T24; 5. Push rod stroke ≥57mm.

Dimension parameters: 1. Installation size: 120.7±0.3; 2. Mounting exposed size of the connecting fork: 75±2; 3. Travel cavity interface thread: M22×1.5-6H.
