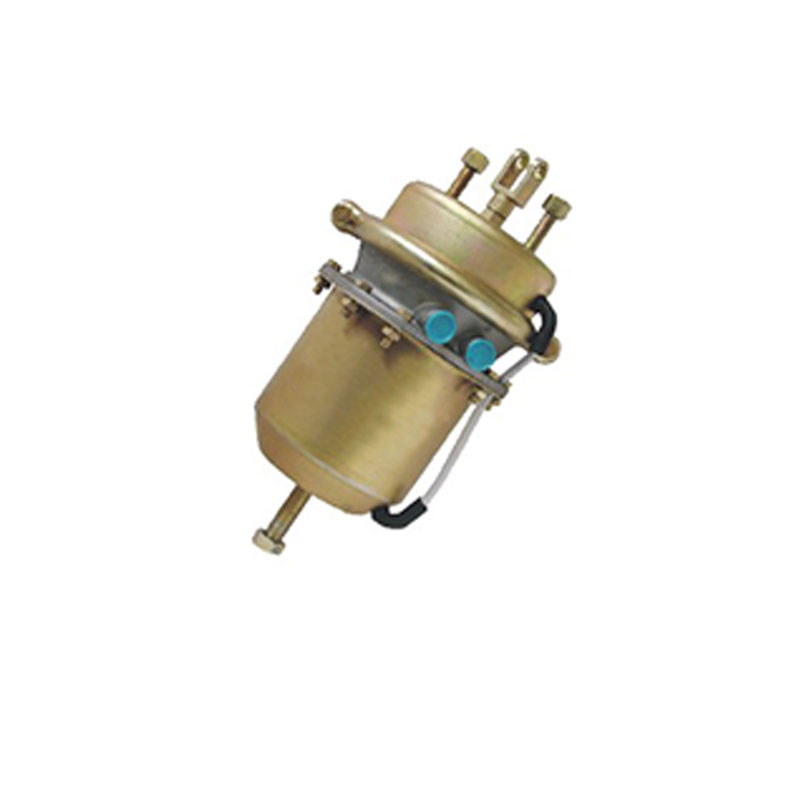

DX-80165-Jac (China passenger) brake air chamber

Performance parameters: 1. Maximum working pressure: 1.3MPa; 2. Rated working pressure: 1.0MPa; 3. Operating temperature range: -40℃～80℃; 4. Brake chamber specifications: T20/16; 5. Push rod stroke ≥57mm.

Dimension parameters: 1. Installation size: 82±0.3; 2. Mounting exposed size of the connecting fork: 60±2; 3. 11-port thread of driving cavity: M16×1.5-6H; 12-port thread of parking cavity: M16×1.5-6H .
