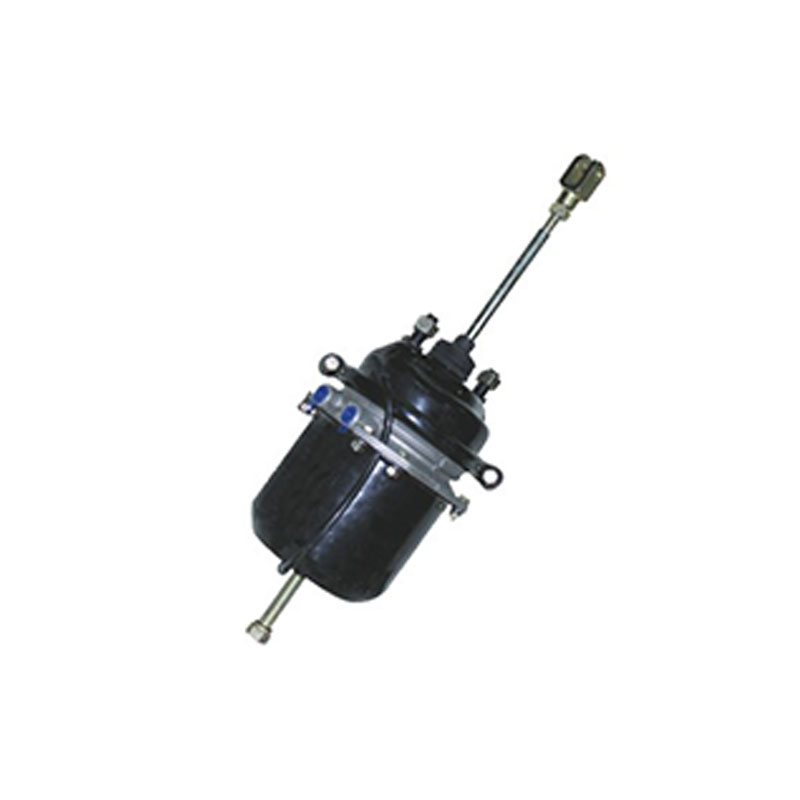

DX-80180-2424 brake air chamber (Shaanxi Automobile)

Performance parameters: 1. Maximum working pressure: 1.3MPa; 2. Rated working pressure: 1.0MPa; 3. Operating temperature range: -40℃～80℃; 4. Brake chamber specifications: T24/24; 5. Push rod stroke ≥57mm.

Dimension parameters: 1. Installation size: 120.7±0.3; 2. Mounting exposed size of the connecting fork: 270±2; 3. 11-port thread of the driving cavity: M22×1.5-6H VOSS; 12-port thread of the parking cavity: M22×1.5- 6H VOSS.
