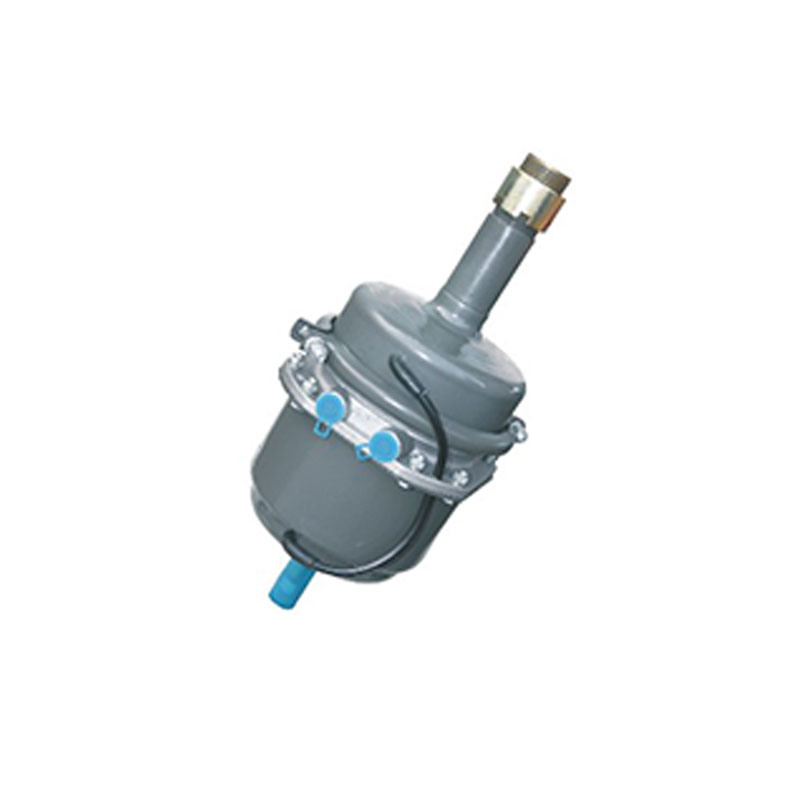

DX-80181-Wedge brake chamber (Hande axle)

Performance parameters: 1. Maximum working pressure: 1.3MPa; 2. Rated working pressure: 1.0MPa; 3. Operating temperature range: -40℃～80℃; 4. Brake chamber specifications: T30/30; 5. Push rod stroke ≥64mm.

Dimension parameters: 1. The inner diameter of the mounting hole: Φ35; 2. The 11-port thread of the driving cavity: M16×1.5-6H; the 12-port thread of the parking cavity: M16×1.5-6H.
