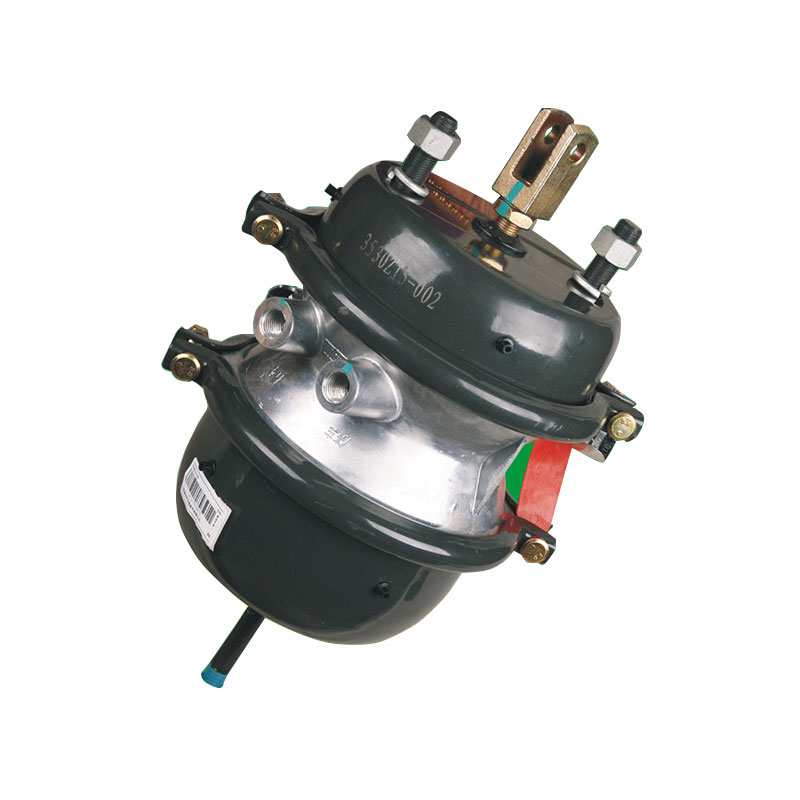

DX-80275 3030 (Dongfeng)

Performance parameters: 1. Maximum working pressure: 1.3MPa; 2. Rated working pressure: 1.0MPa; 3. Operating temperature range: -40℃～80℃; 4. Brake chamber specifications: T30/30; 5. Push rod stroke ≥64mm.

Dimension parameters: 1. Installation size center distance: 120.7±0.3; 2. 11-port thread of the driving cavity: M16×1.5-6H; 12-port thread of the parking cavity: M16×1.5-6H.
