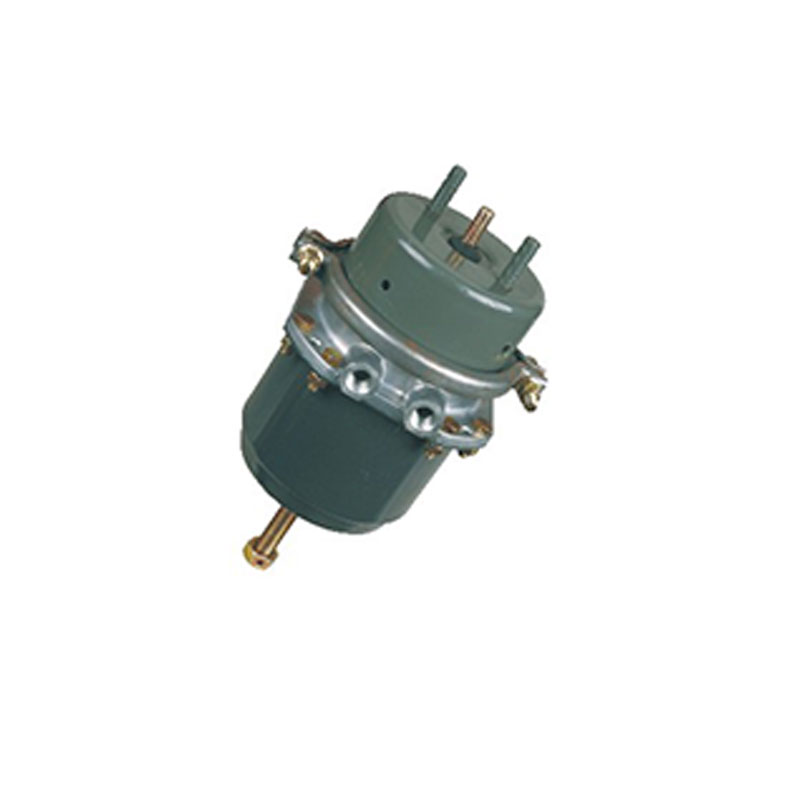

DX-80276-2020 (Dongfeng Q54)

Performance parameters: 1. Maximum working pressure: 1.3MPa; 2. Rated working pressure: 0.85MPa; 3. Operating temperature range: -40℃～80℃; 4. Brake chamber specifications: T16/16; 5. Push rod stroke ≥55mm.

Dimension parameters: 1. Installation size: 82±0.3; 2. Mounting exposed size of the connecting fork: 58±2; 3. 11-port thread of the driving cavity: M16×1.5-6H; 12-port thread of the parking cavity: M16×1.5-6H .
