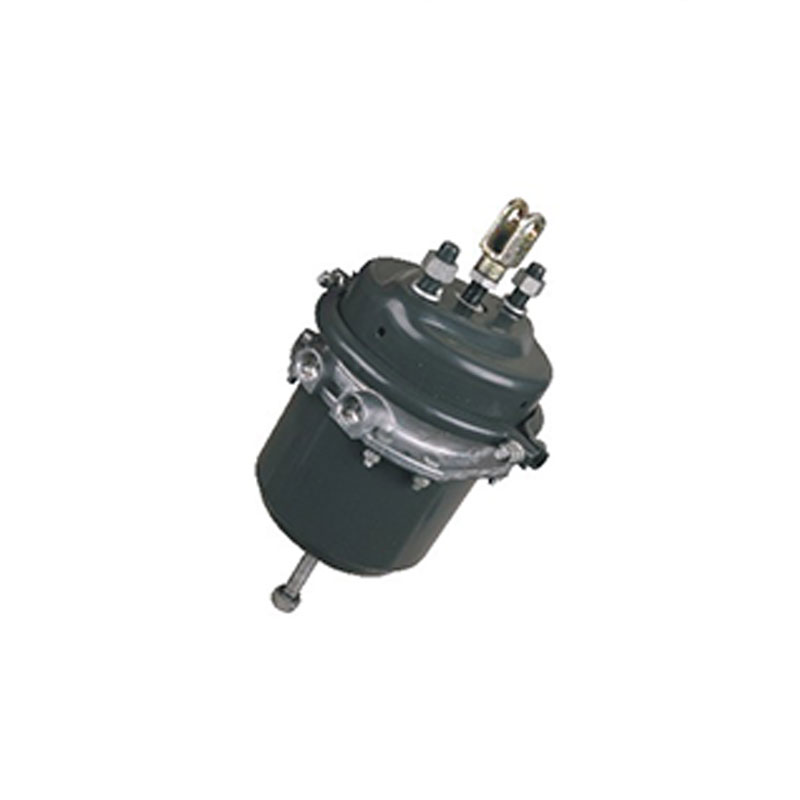

DX-80277-3024 (Dongfeng)

Performance parameters: 1. Maximum working pressure: 1.3MPa; 2. Rated working pressure: 1.0MPa; 3. Operating temperature range: -40℃～80℃; 4. Brake chamber specifications: T30/24; 5. Push rod stroke ≥64mm; 6. Completely relieve the pressure: 510±30KPa.

Dimension parameters: 1. Installation size: 120.7±0.3; 2. Mounting exposed size of connecting fork: 60±2; 3. 11-port thread of driving cavity: M16×1.5-6H; 12-port thread of parking cavity: M16×1.5-6H .
