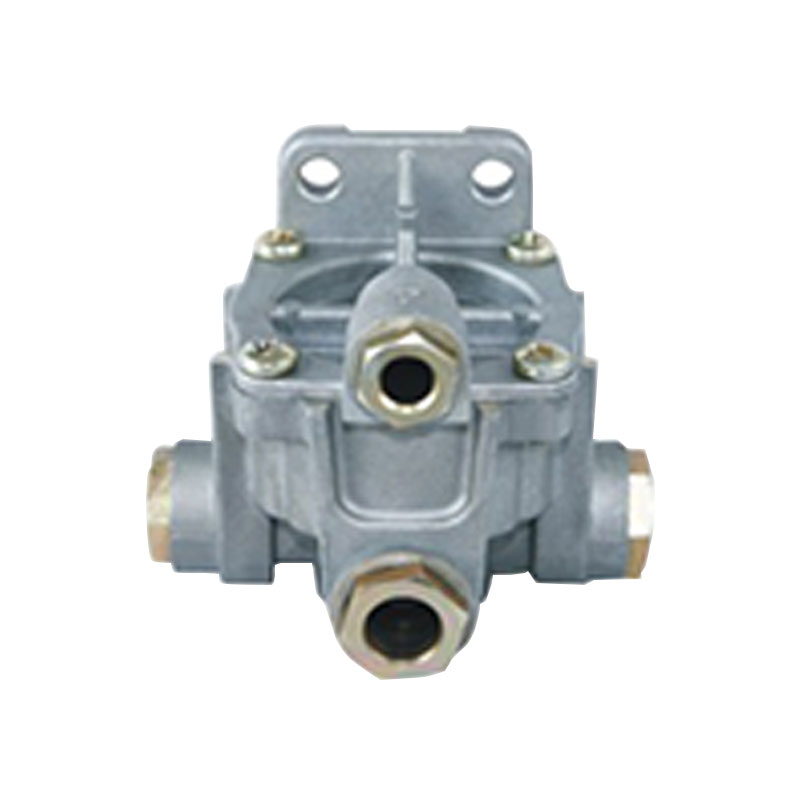

DX-80077 DeLonghi Relay Valve

Performance parameters: 1. Maximum working pressure: 1.3MPa; 2. Rated working pressure: 1.0MPa; 3. Working temperature range: -40℃～80℃.

Dimension parameters: 1. Installation size: 38±0.5; 2. Installation hole diameter: 2×Φ9; 3. Use VOSS quick-insertion nut seat for the air connection, the inner diameter of the air inlet: Φ15±0.05; the inner diameter of the air outlet: 2×Φ15 ±0.05; Inner diameter of control port: Φ10±0.05.
