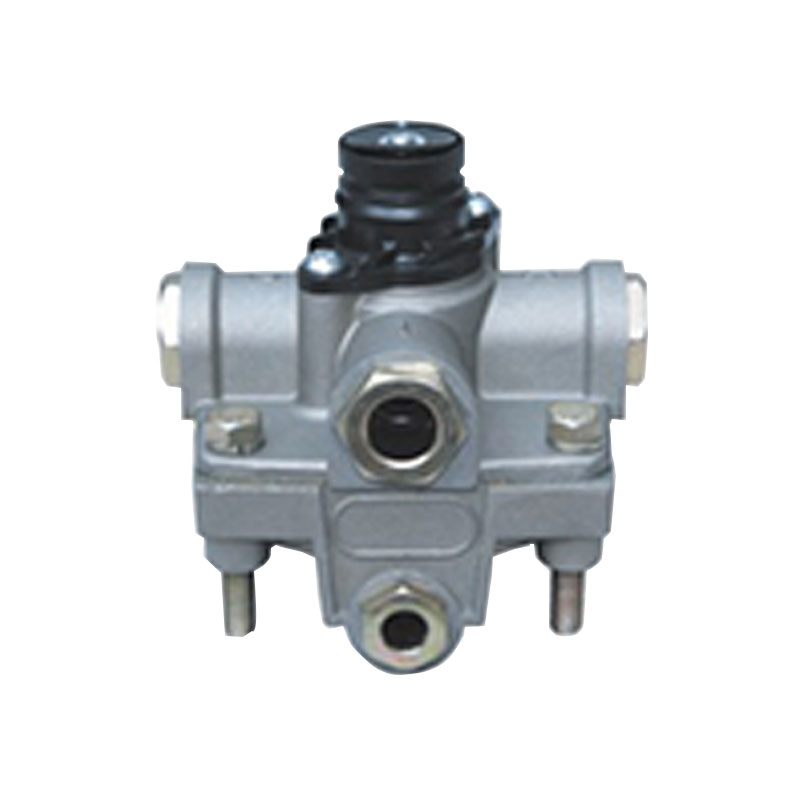

DX-80094 Aowei relay valve

Performance parameters: 1. Maximum working pressure: 1.3MPa; 2. Rated working pressure: 0.85MPa; 3. Working temperature range: -40℃～80℃; 4. Initial equilibrium air pressure: ≤25KPa

Size parameters: 1. Installation size: 75±1; 2. Use VOSS quick-insertion nut seat for air connection, air inlet inner diameter: Φ15±0.05; air outlet inner diameter: 2-Φ15±0.05, control port inner diameter: Φ9.5 ±0.05.
