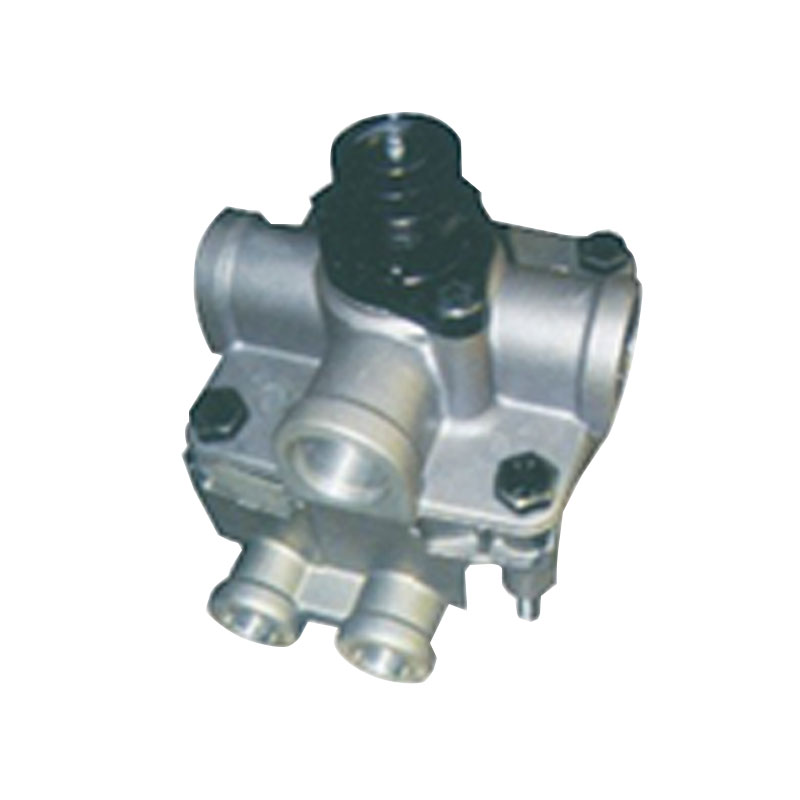

DX-80094-2 Differential Double Chamber Relay Valve

Performance parameters: 1. Maximum working pressure: 1.3MPa; 2. Rated working pressure: 0.85MPa; 3. Working temperature range: -40℃～80℃; 4. Initial equilibrium air pressure: ≤45KPa

Dimension parameters: 1. Installation size: 75±1; 2. Inlet 1 port thread: M22×1.5-6H VOSS, C outlet 2 port thread: 2-M22×1.5-6H VOSS, control 41 port, 42 port thread: M16×1.5-6H VOSS.
