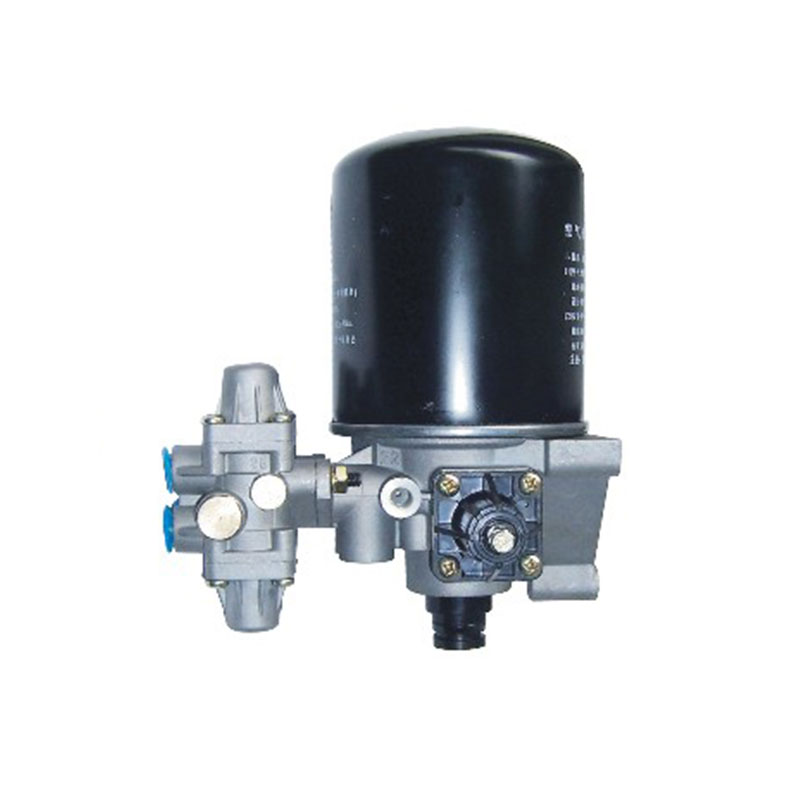

DX-80172 Dongfeng Datian Dragon Belt Fourth Circuit

Performance parameters: 1. Maximum working pressure: 1.3MPa; 2. Cut-off pressure: 0.9±0.02MPa; 4. Pressure drop: 70～120KPa; 3. Working temperature range: -40℃～80℃; 4. Working voltage: 12V DC; 5. Heater power: 100W/12V, automatic switch-on temperature: (7±6)℃, automatic switch-off temperature: (29±3)℃.

Dimension parameters: 1. Installation dimensions: 105±0.5, 72±0.5; 2. Mounting hole thread: 3-M12×1.5-6H; 3. Inlet 1 port thread: M22×1.5-6H; outlet 21, 22, 23 , 24-port thread: 4-M22×1.5-6H.
