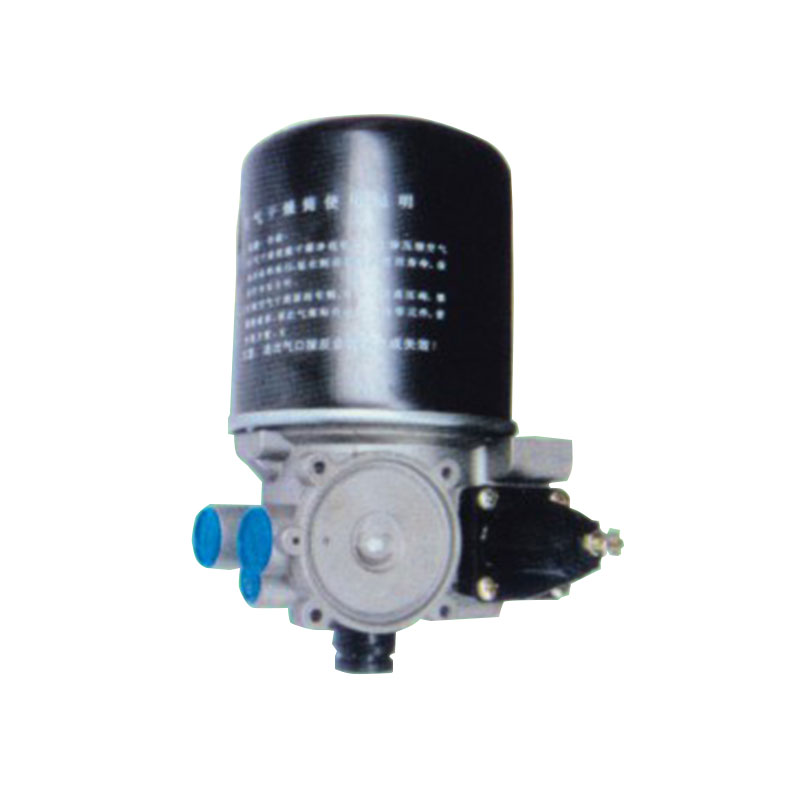

DX-80174 Steyr air dryer

Performance parameters: 1. Maximum working pressure: 1.3MPa; 2. Cut-off pressure: 0.81±0.02MPa; 3. Backflush pressure drop: 60±10KPa; 4. Pressure drop: 70～120KPa; 4. Working temperature range: -40℃ ～80℃; 5. Working voltage: 12V DC; 6. Heater power: 100W/12V, automatic switch-on temperature: (7±6)℃, automatic switch-off temperature: (29±3)℃.

Size parameters: 1. Installation size: 105±0.5, 72±0.5; 2. Mounting hole thread: 3-M12×1.5-6H; 3. Inlet 1 port thread: M22×1.5-6H; Outlet 21 port thread: M22 ×1.5-6H VOSS; 22 outlet thread: M12×1.5-6H.
