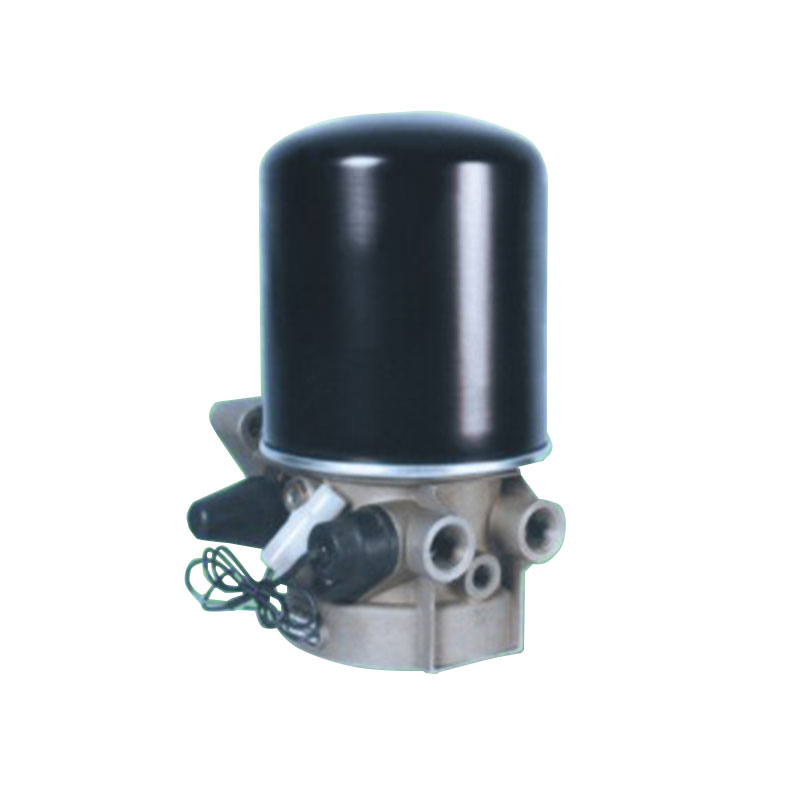

DX-80176 Jianghuai dryer

Performance parameters: 1. Maximum working pressure: 1.3MPa; 2. Working temperature range: -40℃～80℃; 3. Working voltage: 12V DC; 6. Heater power: 100W/12V, automatic switch-on temperature: (7 ±6)℃, automatic disconnection temperature: (29±3)℃.

Size parameters: 1. Installation size: 105±0.5, 72±0.5; 2. Mounting hole thread: 3-M12×1.5-6H; 3. Inlet 1 port thread: M22×1.5-6H; Outlet 21 port thread: M22 ×1.5-6H
