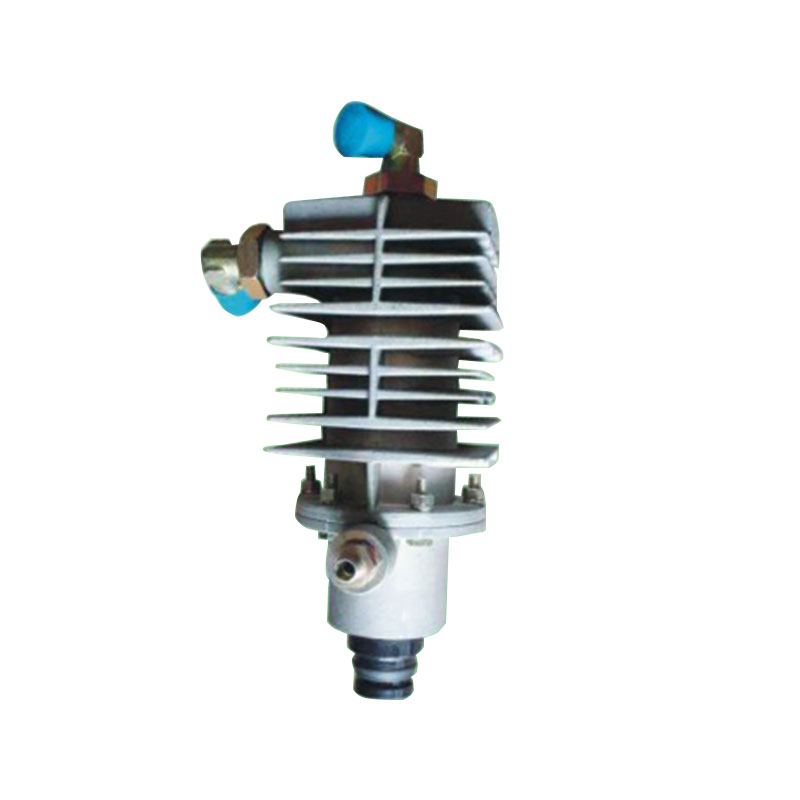

DX-80273 Condenser

Performance parameters: 1. Maximum working pressure: 1.5MPa; 2. Rated working pressure: 1.0MPa; 3. Working temperature range: -40℃～80℃; 4. Displacement: 70ml.

Size parameters: 1. Installation size: 72±0.8, 50±0.3; 2. Air inlet with joint: joint thread M18×1.5-6g, outlet with joint: joint thread M18×1.5-6g, drain port inner diameter : Φ17.
