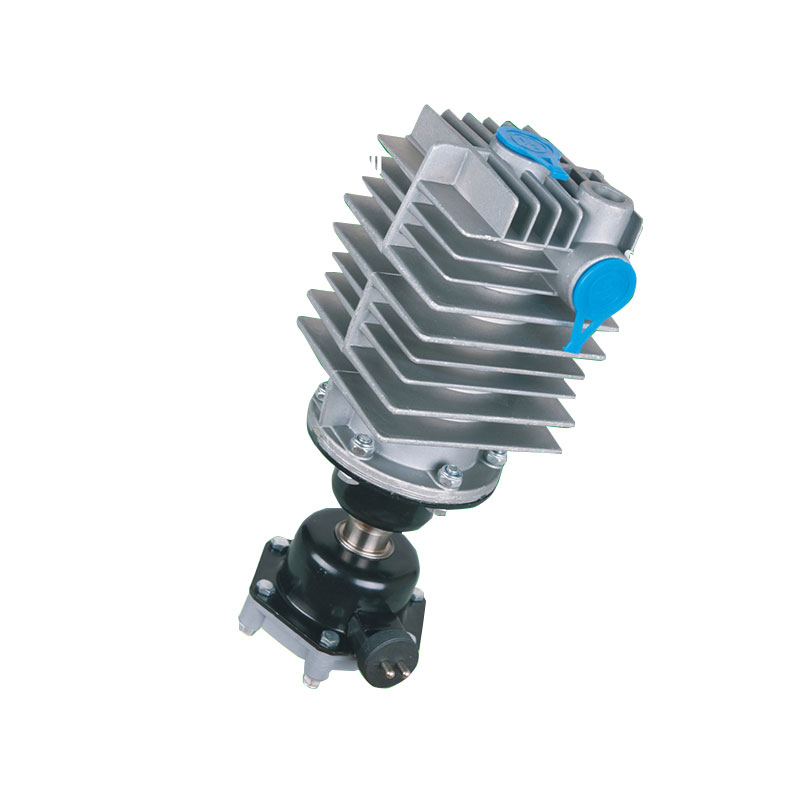

DX-80274 condenser

Performance parameters: 1. Maximum working pressure: 1.5MPa; 2. Rated working pressure: 1.0MPa; 3. Working temperature range: -40℃～80℃; 4. Displacement: 70ml; 5. Antifreeze device is installed at the bottom.

Dimension parameters: 1. Installation dimensions: 72±0.8, 50±0.3; 2. Air inlet thread: M22×1.5-6H, air outlet thread: M22×1.5-6H, drain port inner diameter: Φ17.
