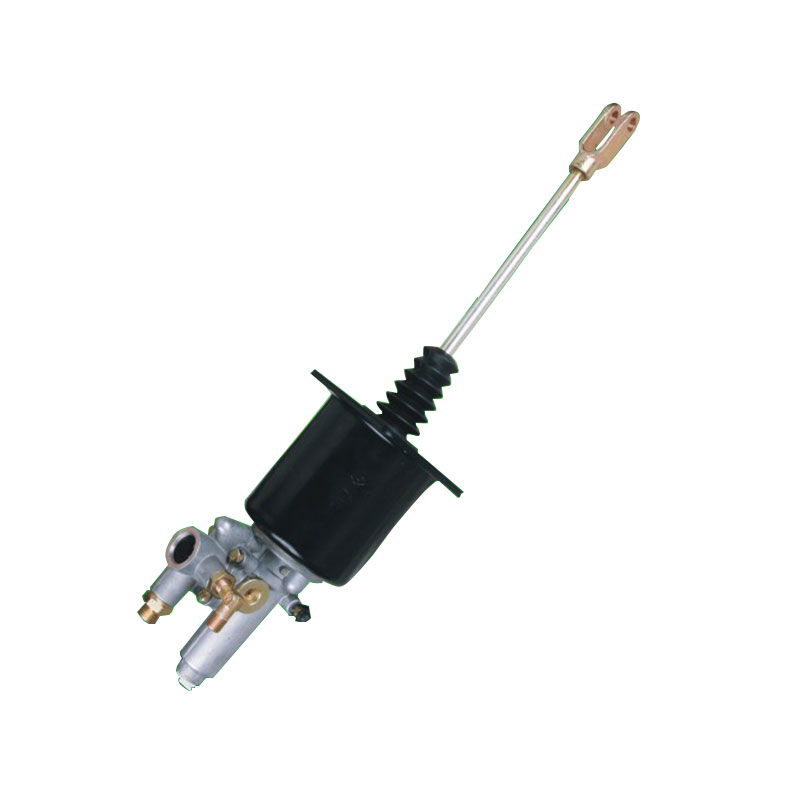

DX-86003 clutch booster

Performance parameters: 1. Working medium: brake fluid; 2. Maximum working pressure: brake fluid oil pressure: 4 MPa, abnormal conditions: 12 MPa, air pressure 1.2 MPa; 3. Rated working air pressure: 0.8 MPa; 3. Working temperature range ：-40℃～100℃.

Dimension parameters: 1. Installation size: 92±0.5; 2. Installation hole inner diameter: 4-Φ11; 3. Air inlet connector thread: M16×1.5-6g; Oil inlet thread: M14×1.5-6H; 4. Connection Exposed size of fork installation: 248.5±2.

Structural parameters: hydraulic cylinder bore φ22, cylinder bore φ105, total stroke of cylinder piston 70min.
