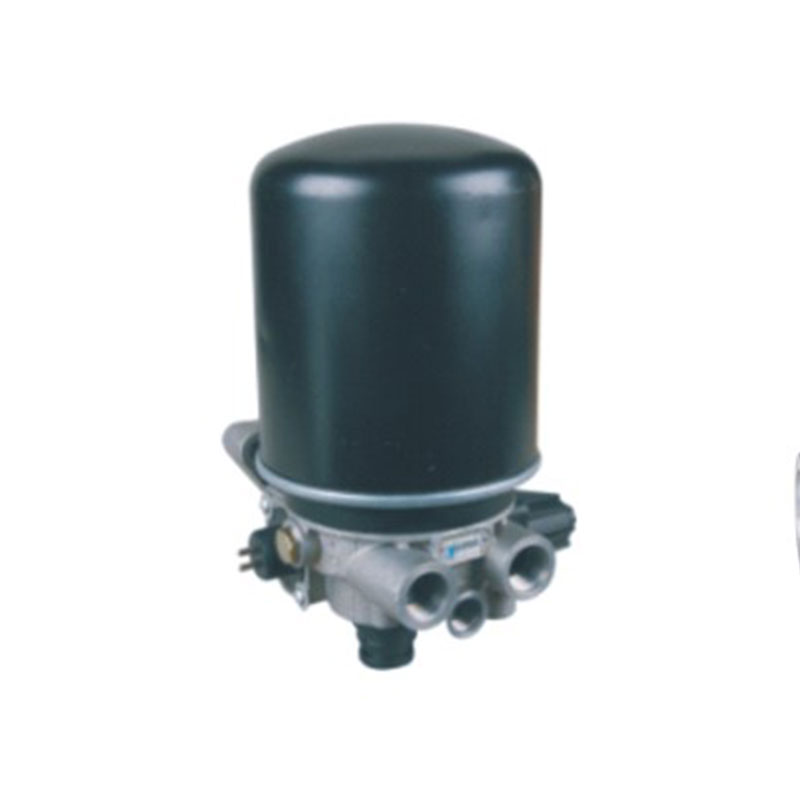

DX-80011 dryer

Performance parameters: 1. Maximum working pressure: 1.3MPa; 2. Cut-off pressure: 0.81±0.02MPa; 3. Pressure drop: 100～150KPa; 4. Working temperature range: -40℃～80℃; 5. Working voltage: 24V DC; 6. Heater power: 100W/24V, automatic switch-on temperature: (7±6)℃, automatic switch-off temperature: (29±3)℃.

Size parameters: 1. Installation size: 105±0.5, 72±0.5; 2. Mounting hole thread: 3-M12×1.5-6H; 3. Inlet 1 port thread: M22×1.5-6H; Outlet 21 port thread: M22 ×1.5-6H VOSS; 22 outlet thread: M12×1.5-6H.
