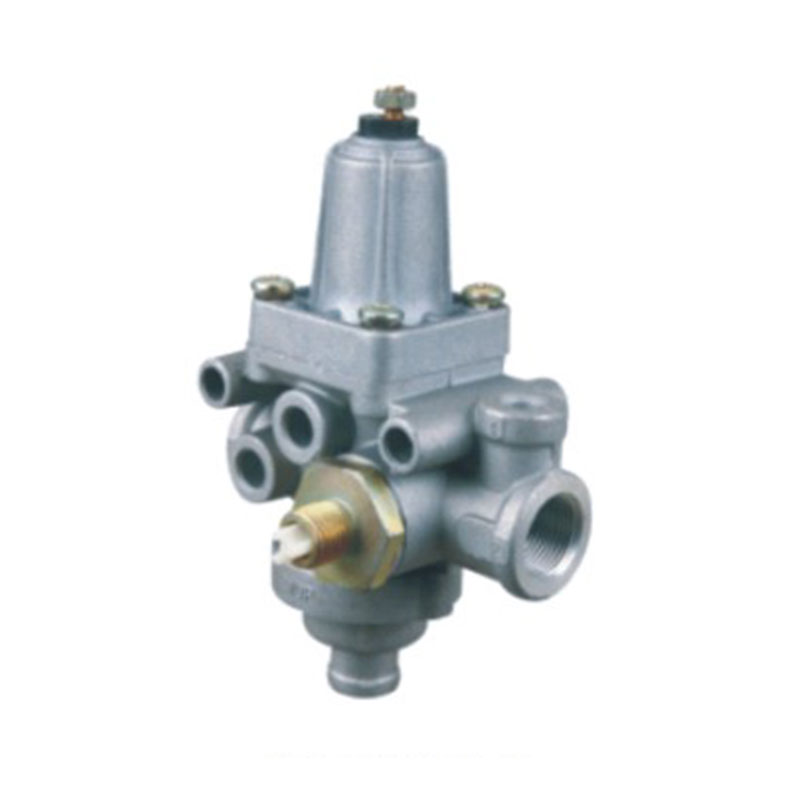

DX-80012-1 Unloading valve

Performance parameters: 1. Cut-off pressure: 1.0±0.02MPa; 2. Pressure drop: 70～150KPa; 3. Operating temperature range: -40℃～80℃.

Dimension parameters: 1. Installation size: 70±0.5; 2. Installation hole inner diameter: 2-Φ8.8min; 3. Inlet 1 port thread: M22×1.5-6H; Outlet 21 port thread: M22×1.5-6H; control 4-port thread: M12×1.5-6H; 4. Air valve connector thread: M16×1.5-6g.
