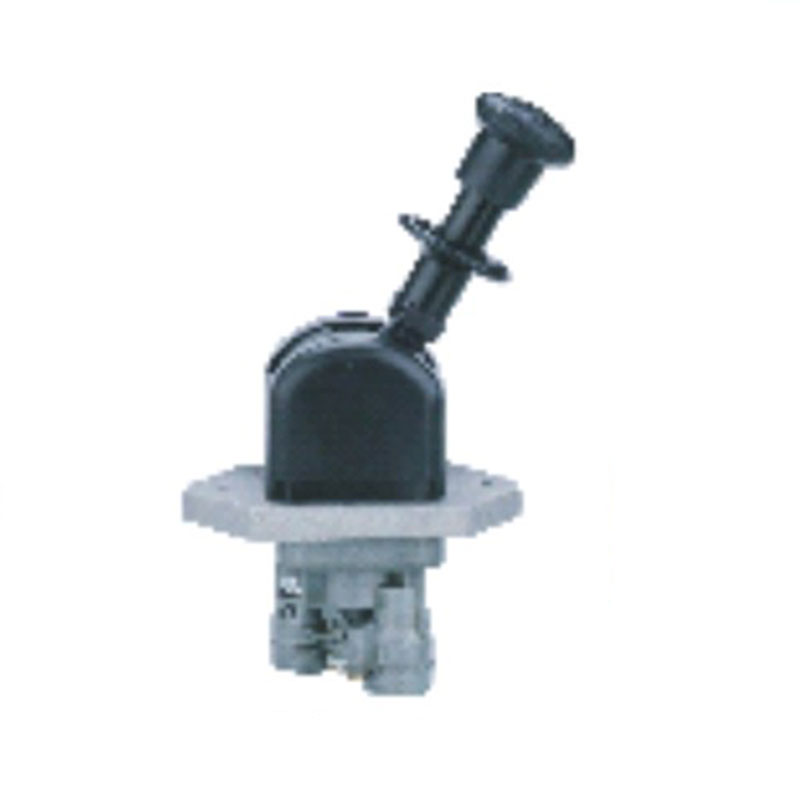

DX-80040 hand control valve (two holes)

Performance parameters: 1. Maximum working pressure: 1.25MPa; 2. Rated working pressure: 0.85MPa; 3. Working temperature range: -40℃～80℃.

Dimension parameters: 1. Installation size: 80±0.5; 2. Mounting hole thread: 2-M8-6H; 3. Inlet 1 port thread: M16×1.5-6H VOSS; Outlet 2 port thread: M16×1.5-6H VOSS .
