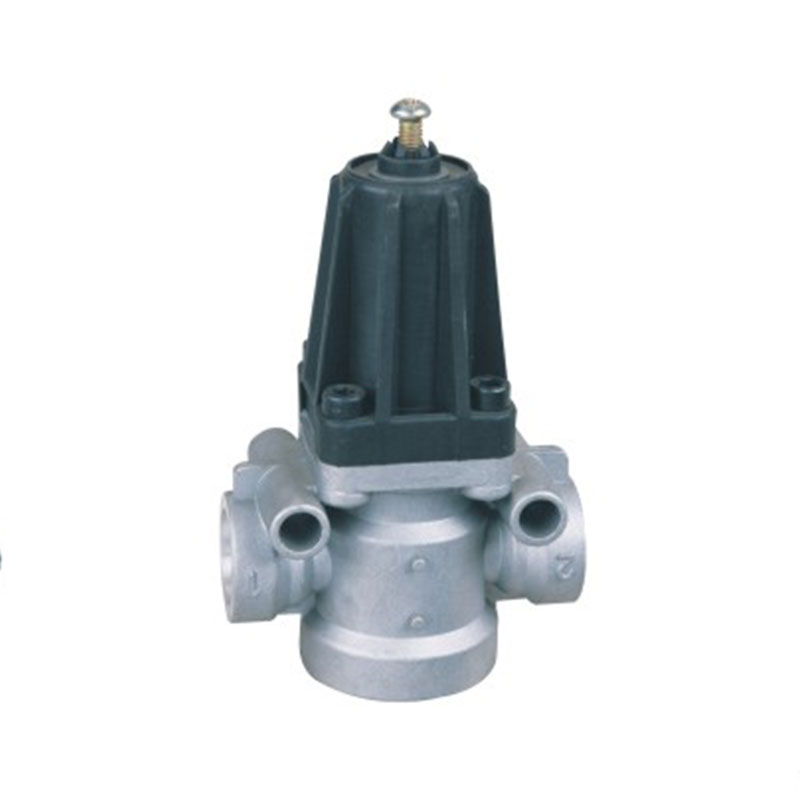

DX-80279 Pressure regulating valve

Performance parameters: 1. Maximum working pressure: 1.2MPa; 2. Rated working pressure: 1.0MPa; 3. Working temperature range: -40℃～80℃; 4. Pressure limiting output pressure: 0.85±0.03MPa.

Dimension parameters: 1. Installation size: 56±0.2; 2. Installation hole inner diameter: 2-Φ8.3min; 3. Inlet 1 port thread: M22×1.5-6H; Outlet 2 port thread: M22×1.5-6H.
