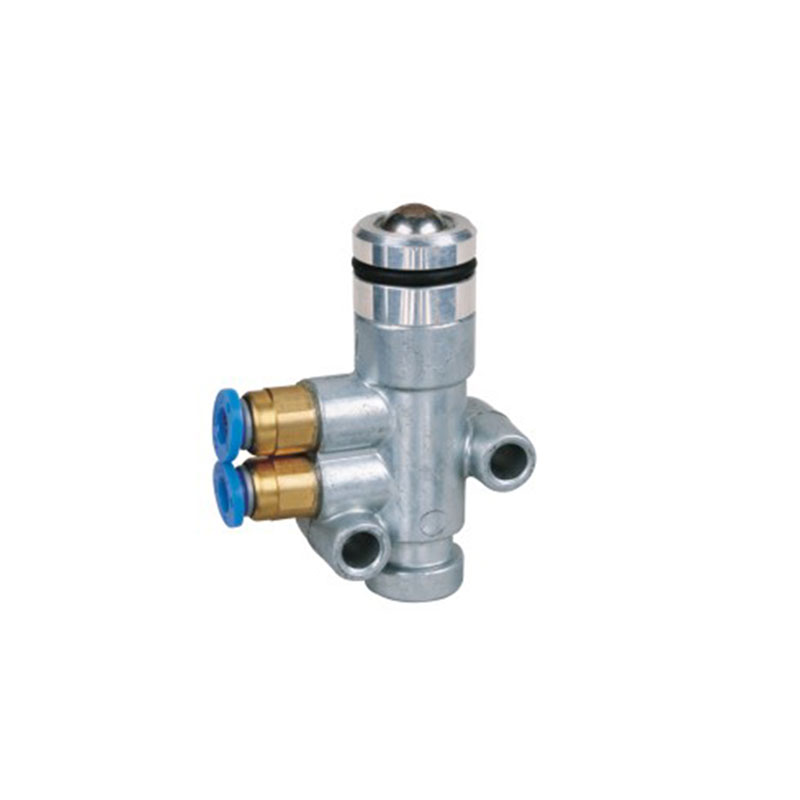

DX-80280 Button Valve

Performance parameters: 1. Maximum working pressure: 1.3MPa; 2. Rated working pressure: 1.0MPa; 3. Working temperature range: -40℃～100℃.

Dimension parameters: 1. Installation dimensions: 19±0.5, 6±0.5, 28±0.5; 2. Inner diameter of mounting hole: 2-Φ6.3; 3. Inlet 1 thread: NPT1/8 to the tracheal quick-plug connector; out of air 2-port thread: NPT1/8 to connect the tracheal quick-plug connector.
