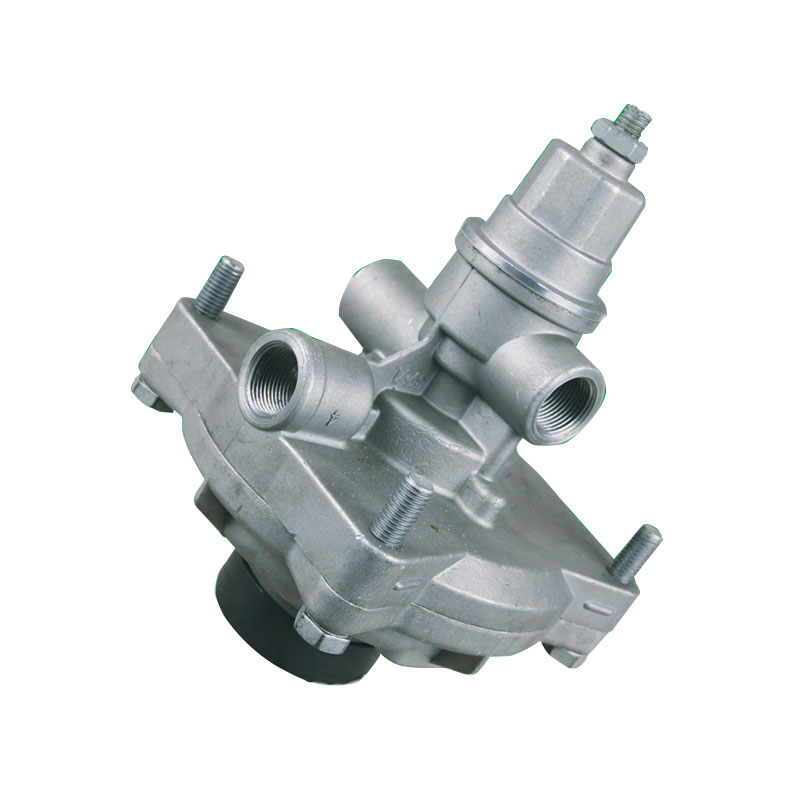

DX-85009 One-way operation valve

Performance parameters: 1. Maximum working pressure: 1.3MPa; 2. Rated working pressure: 1.0MPa; 3. Working temperature range: -40℃～80℃.

Dimension parameters: 1. Installation size: 2-116±0.5; 2. Installation thread: 4-M10-6g, 3. Inlet 1 port thread: M22×1.5-6H; Outlet 2 port thread: M22×1.5-6H; Control 4-port thread: M22×1.5-6H.
