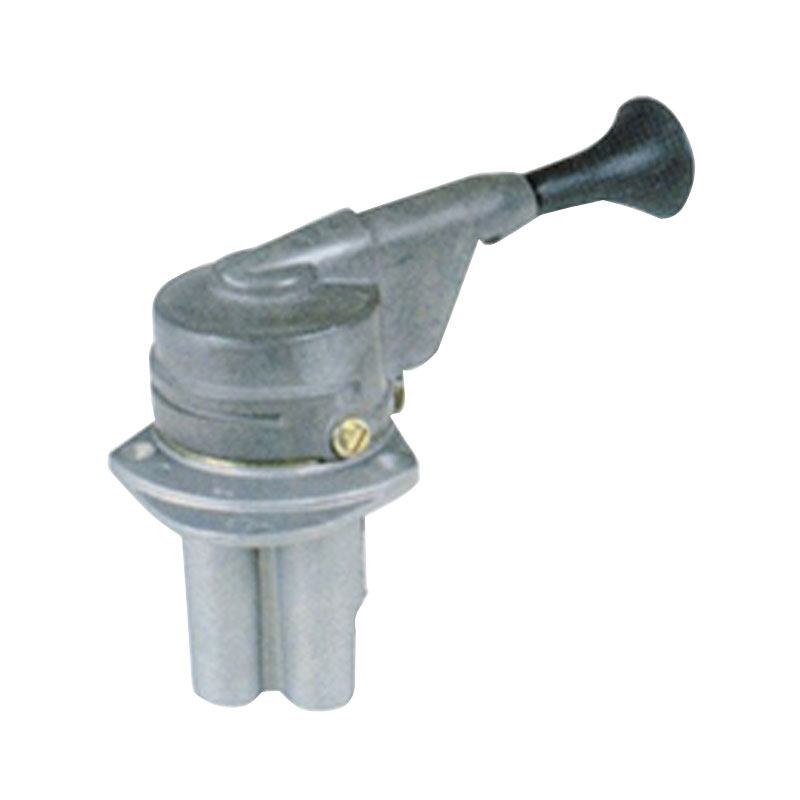

DX-80037 Yaxing three-hole manual valve

Performance parameters: 1. Maximum working pressure: 1.25MPa; 2. Rated working pressure: 0.8MPa; 3. Working temperature range: -40℃～80℃.

Dimension parameters: 1. Installation size: 75±0.5, 21±0.5; 2. Inner diameter of mounting hole: 2-Φ7; 3. Thread of inlet 1 port: M14×1.5-6H; Thread of outlet 2 port: 2-M14×1.5 -6H; 3-port thread of exhaust port: M14×1.5-6H.
