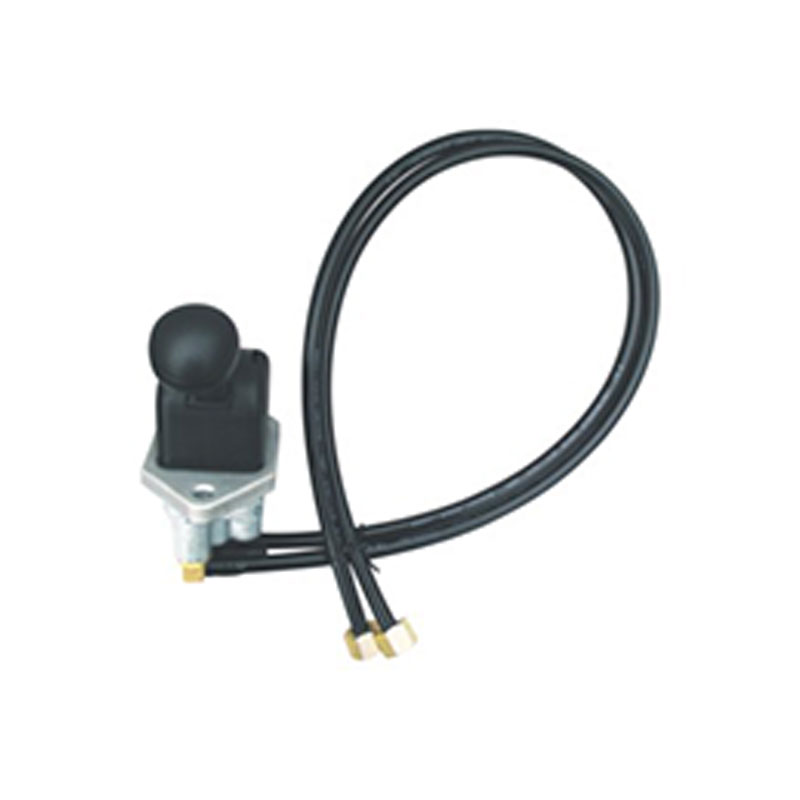

DX-80164 manual control valve (240, Qingqi, Changchun, Hangzhou)

Performance parameters: 1. Maximum working pressure: 1.2MPa; 2. Rated working pressure: 0.8MPa; 3. Working temperature range: -40℃～80℃.

Dimension parameters: 1. Installation size: 80±0.2; 2. Installation hole thread: 2-M8-6H; 3. Inlet 1 port thread: M16×1.5-6H; Outlet 2 port thread: M16×1.5-6H; 4 , Install a nut seat and pneumatic pipeline at the air connection.
