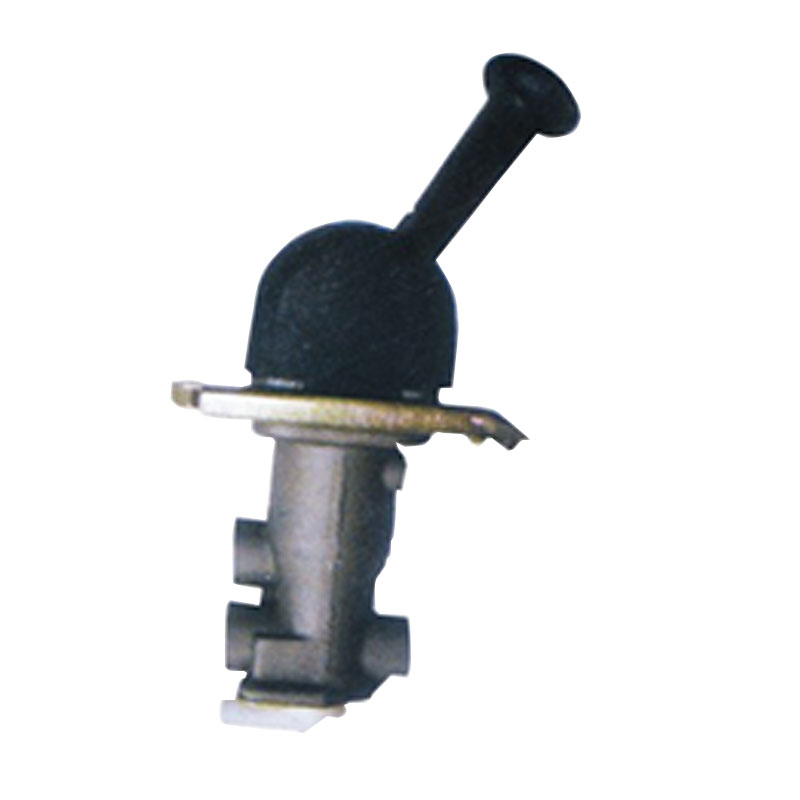

DX-80165 153 two-hole manual valve

Performance parameters: 1. Maximum working pressure: 1.2MPa; 2. Rated working pressure: 0.8MPa; 3. Working temperature range: -40℃～80℃.

Dimension parameters: 1. Installation size: 80±0.5, 45±0.5; 2. Inner diameter of mounting hole: 4-Φ7; 3. Thread of inlet 1 port: M14×1.5-6H; Thread of outlet 2 port: M14×1.5-6H .
