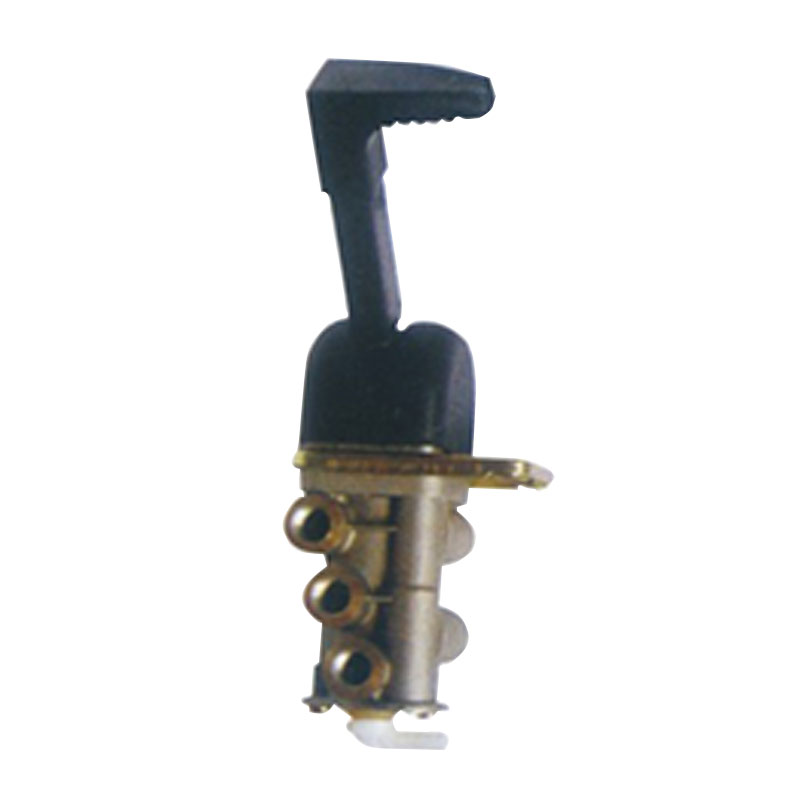

DX-80167 North Benz three-port manual control valve

Performance parameters: 1. Maximum working pressure: 1.25MPa; 2. Rated working pressure: 0.85MPa; 3. Working temperature range: -40℃～80℃.

Dimension parameters: 1. Installation size: 50±0.2, 40±0.2; 2. Mounting hole thread: 2-M8-6H; 3. Inlet 1 port thread: M14×1.5-6H; Outlet 21, 22 port thread: 2 -M14×1.5-6H.
