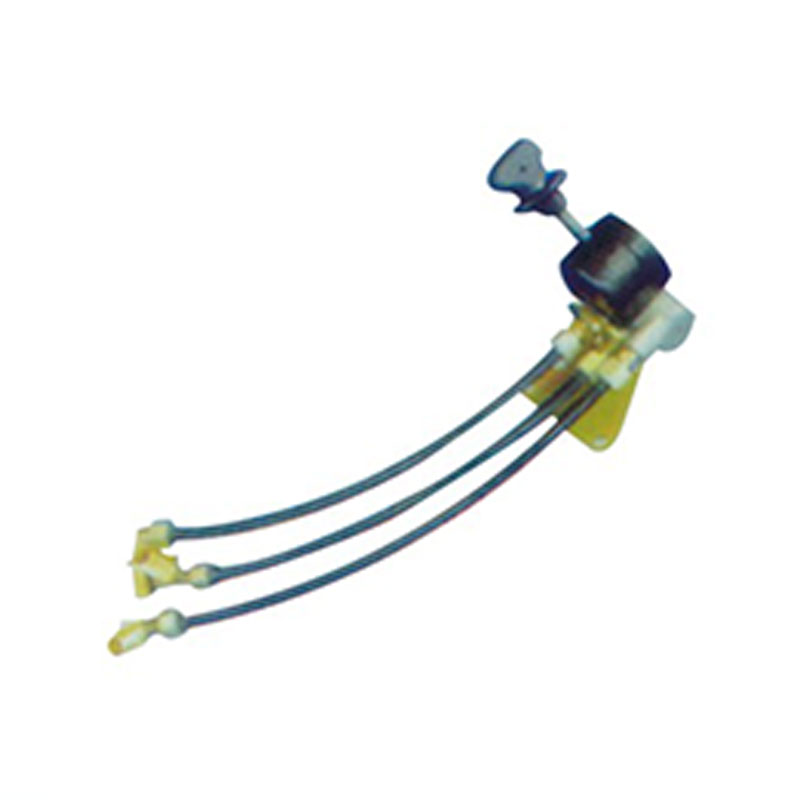

DX-80168 Four Kings Hand Control Valve

Performance parameters: 1. Maximum working pressure: 1.2MPa; 2. Rated working pressure: 0.8MPa; 3. Working temperature range: -40℃～80℃.

Dimension parameters: 1. Installation size: 80±0.2; 2. Mounting hole thread: 2-M8-6H; 3. Inlet 1 port thread: NPT3/8; Outlet 21, 22 port thread: 2-NPT3/8; 4 , Install air pipe joints and pneumatic pipes at the air connection.
