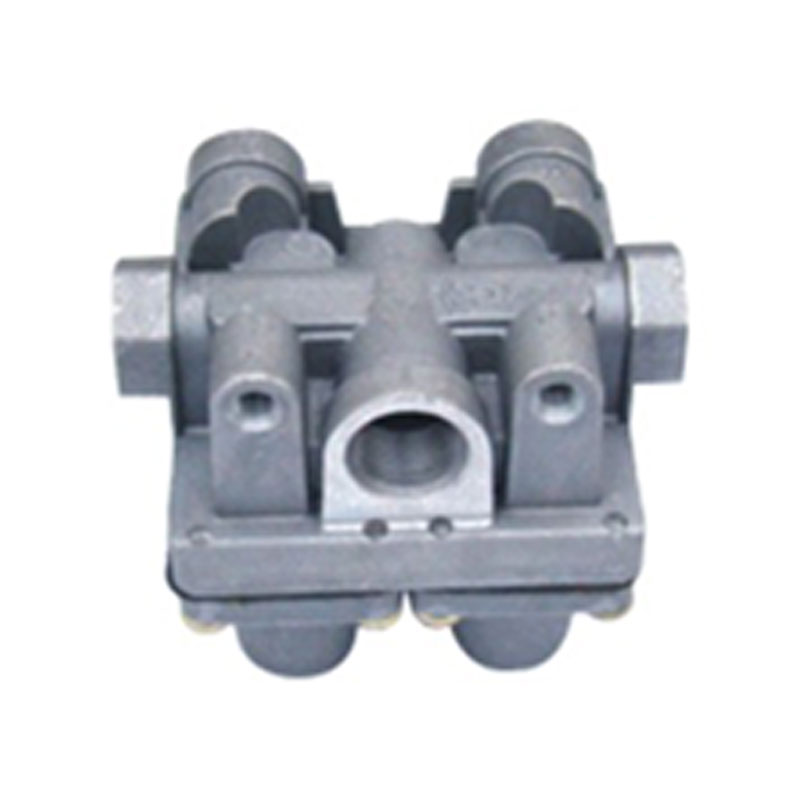

DX-80032 3515N-010 Four-circuit protection valve

Performance parameters: 1. Maximum working pressure: 2.0MPa; 2. Opening pressure: 0.66～0.69MPa; 3. Dynamic closing pressure ≥0.64MPa; 4. Static closing pressure: ≥0.55MPa; 5. Operating temperature range: -40℃ ～80℃.

Dimension parameters: 1. Installation size: 58±0.5; 2. Installation hole thread: 2-M8-6H; 3. Inlet 1 port thread: M22×1.5-6H; Outlet 21, 22, 23, 24 port thread: 4 -M16×1.5-6H.
