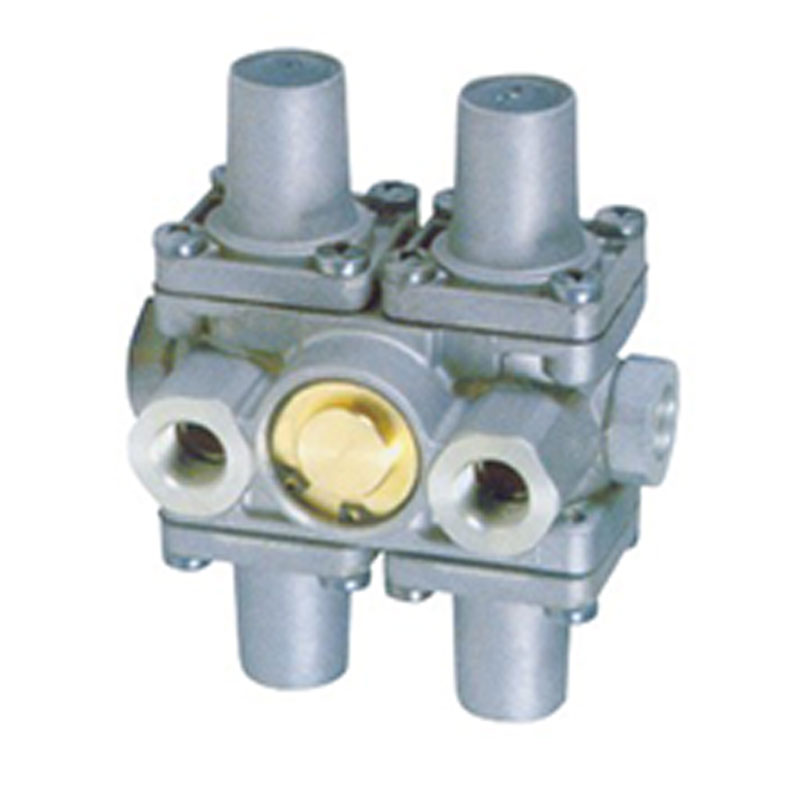

DX-80110 Four-circuit protection valve

Performance parameters: 1. Maximum working pressure: 2.0 MPa; 2. Opening pressure: 0.51～0.54 MPa; 3. Dynamic closing pressure ≥ 0.5 MPa; 4. Static closing pressure: ≥ 0.5 MPa; 5. Operating temperature range: -40°C ～80℃.

Dimension parameters: 1. Installation size: 58±0.5; 2. Installation hole thread: 2-M8-6H; 3. Inlet 1 port thread: M22×1.5-6H; Outlet 21, 22, 23, 24 port thread: 4 -M16×1.5-6H.
