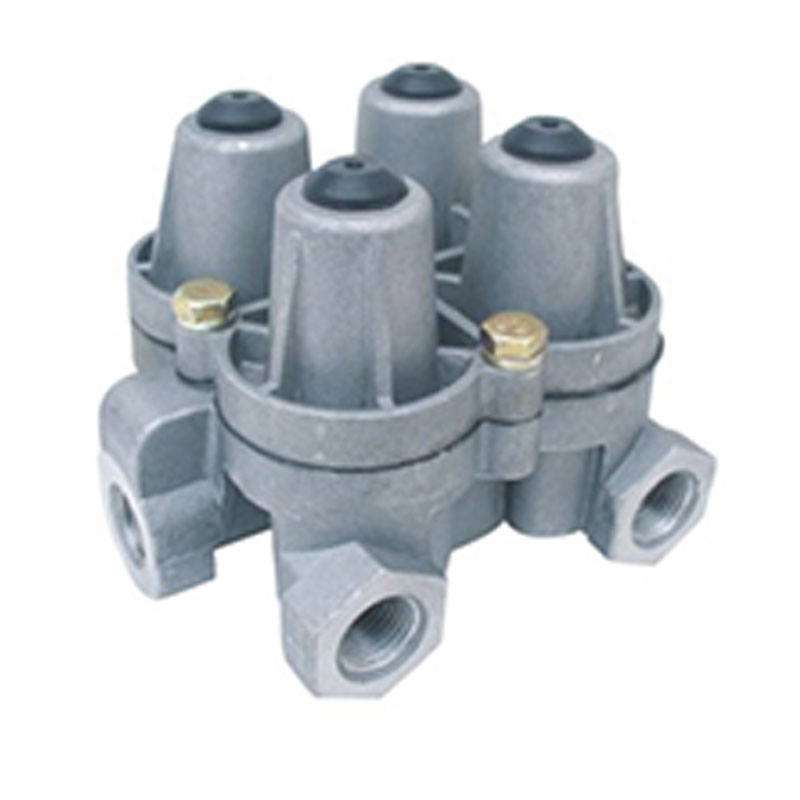

DX-80180 Hangzhou steam four-circuit protection valve

Performance parameters: 1. Maximum working pressure: 1.5MPa; 2. Opening pressure: 0.56～0.59MPa; 3. Dynamic closing pressure ≥0.52MPa; 4. Static closing pressure: ≥0.5MPa; 5. Operating temperature range: -40℃ ～80℃.

Dimension parameters: 1. Installation size: 58±0.5; 2. Installation hole thread: 2-M8-6H; 3. Inlet 1 port thread: M16×1.5-6H; Outlet 21, 22, 23, 24 port thread: 4 -M16×1.5-6H.
