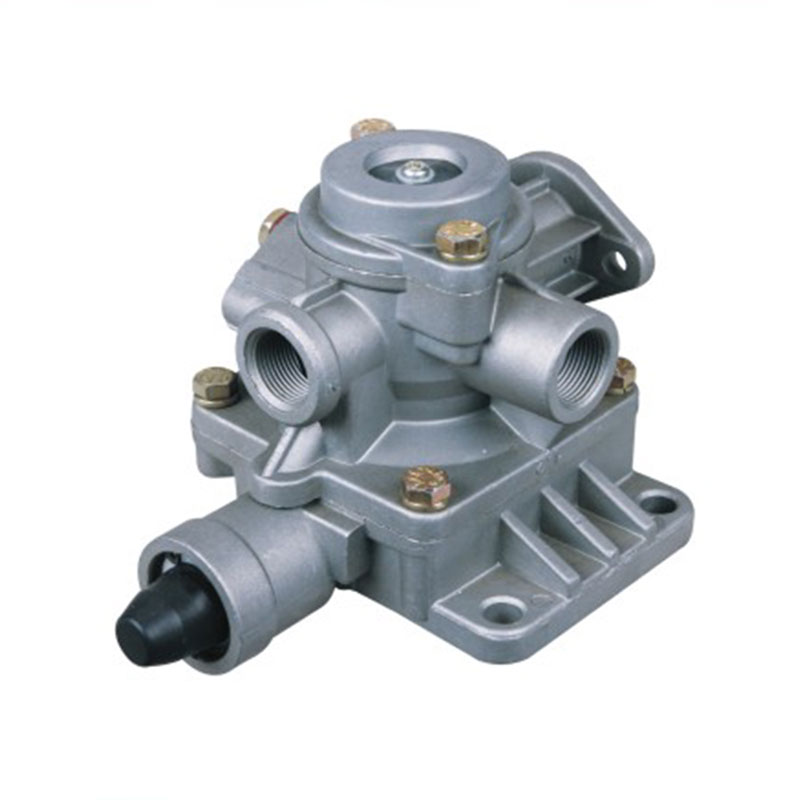

DX-8005 Chongqing type emergency relay valve

Performance parameters: 1. Maximum working pressure: 1.3MPa; 2. Rated working pressure: 1.0MPa; 3. Working temperature range: -40℃～80℃.

Dimension parameters: 1. Installation size: 71±0.5; 2. Inner diameter of mounting hole: 2-Φ11; 3. Thread of inlet 1 port: M16×1.5-6H; Thread of inlet 1-2 port: M22×1.5-6H; 2 air outlet threads: M22×1.5-6H, 2-M16×1.5-6H; control 4-port threads: M16×1.5-6H.
