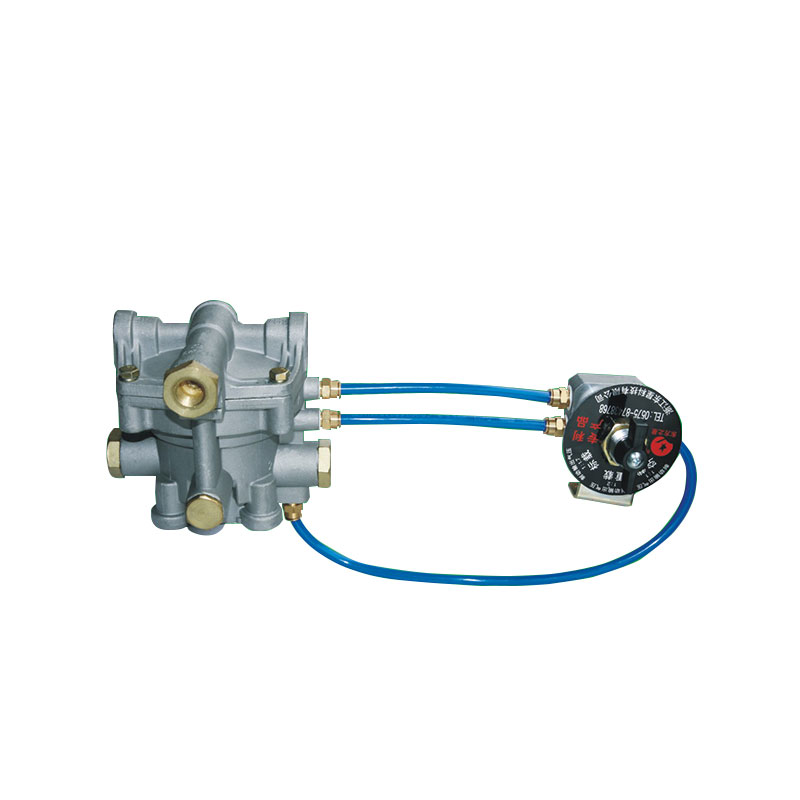

Patented product DX-8000 adjustable three-bridge synchronous emergency relay valve

Performance parameters: 1. Maximum working pressure: 1.3MPa; 2. Rated working pressure: 1.0MPa; 3. Operating temperature range: -40℃～80℃; 4. Three ratios with adjustable switches (heavy load, standard load and Light load) emergency relay valve.

Dimension parameters: 1. Installation size: 2-83±0.5; 2. Inlet 1 thread: NPT3/8; Inlet 1-2 thread: NPT3/4; Outlet 2 thread: 6-NPT3/8; Control 4-port thread: 2-NPT3/8.
