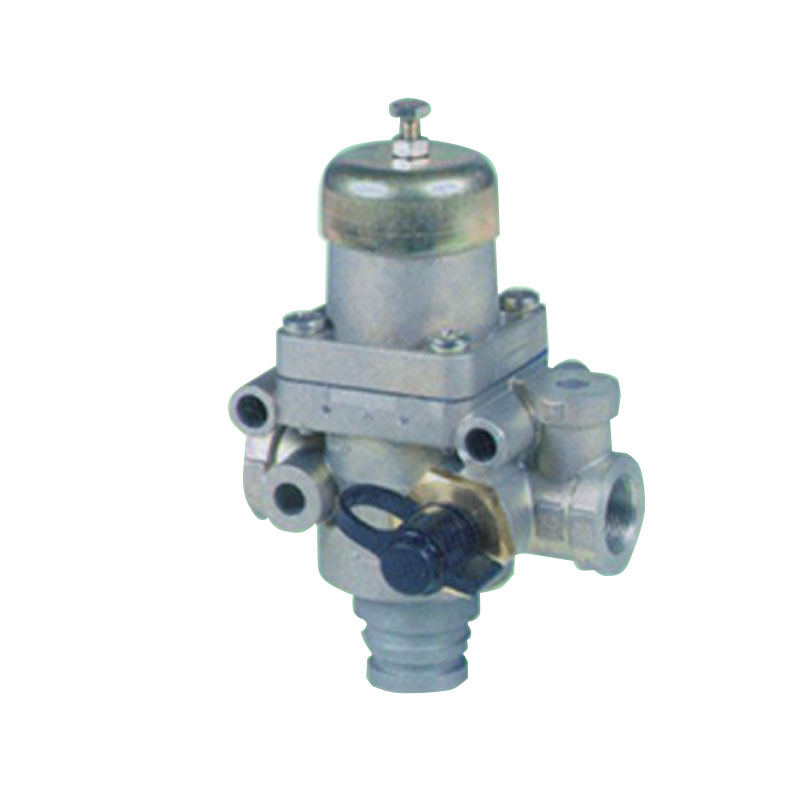

DX-80026 Unloading valve

Performance parameters: 1. Cut-off pressure: 0.81±0.02MPa; 2. Pressure drop: 70～150KPa; 3. Operating temperature range: -40℃～80℃.

Size parameters: 1. Installation size: 70±0.5; 2. Installation hole inner diameter: 2-Φ8.8min; 3. Inlet 1 port thread: M22×1.5-6H; Outlet 21 port thread: M22×1.5-6H; 4 , Air valve connector thread: M16×1.5-6g.
