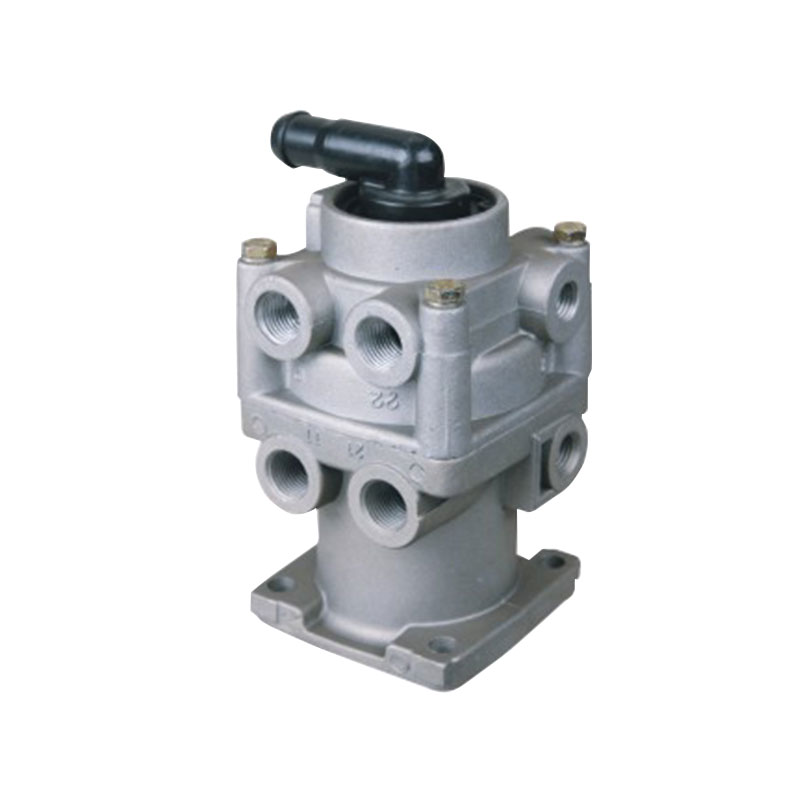

DX-80043 Auman brake valve

Performance parameters: 1. Maximum working pressure: 1.3MPa; 2. Rated working pressure: 0.85MPa; 3. Working temperature range: -40℃～80℃; 4. The pressure lead of the first loop to the second loop ΔP=30 (10, -20) KPa.

Dimension parameters: 1. Installation size: 2-61±0.5; 2. Inlet 11 and 12 port thread: 2-M16×1.5-6H; Outlet 21, 22 port thread: 2-M16×1.5-6H; 3. Auxiliary Thread of 11 intake ports: M12×1.5-6H; Thread of auxiliary intake 12 ports: M12×1.5-6H.
