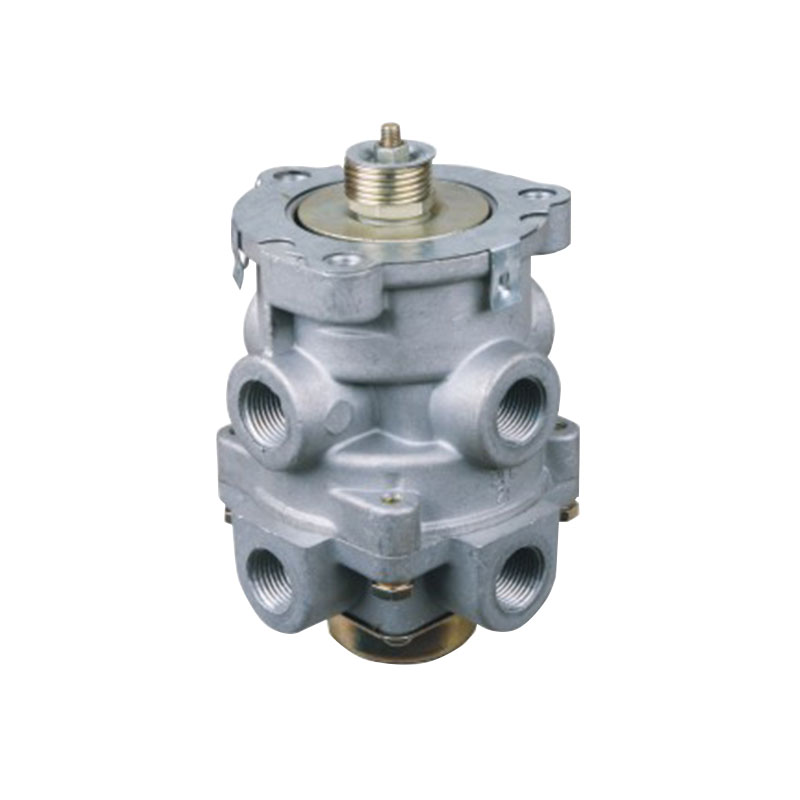

DX-80099 brake valve (outlet

Performance parameters: 1. Maximum working pressure: 1.2MPa; 2. Rated working pressure: 0.85MPa; 3. Working temperature range: -40℃～80℃; 4. The pressure lead of the first loop to the second loop ΔP=30 (10, -20) KPa.

Dimension parameters: 1. Installation size: Φ73±0.5; 2. Installation hole thread: 3-M8-6H; 3. Air inlet 11, 12 port thread: 4-NPT3/8; Outlet 21, 22 port thread: 4-NPT3 /8.
