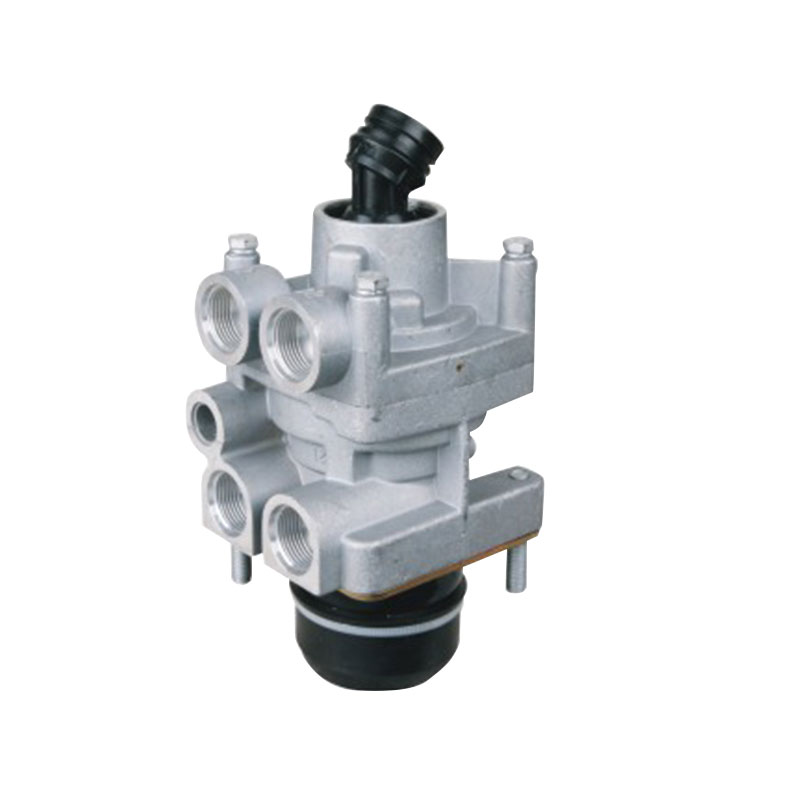

DX-80101 YD3514M-010 Series valve (Shaanxi Automobile)

Performance parameters: 1. Maximum working pressure: 1.2MPa; 2. Rated working pressure: 0.85MPa; 3. Working temperature range: -40℃～80℃; 4. The pressure lead of the first loop to the second loop ΔP=30 (10, -20) KPa.

Dimension parameters: 1. Installation size: 2-35±0.1; 2. Installation bolt thread: 2-M8-6h; 3. Inlet 11, 12 port thread: 2-M22×1.5-6H VOSS; Outlet 21, 22 port Thread: 2-M22×1.5-6H VOSS.
