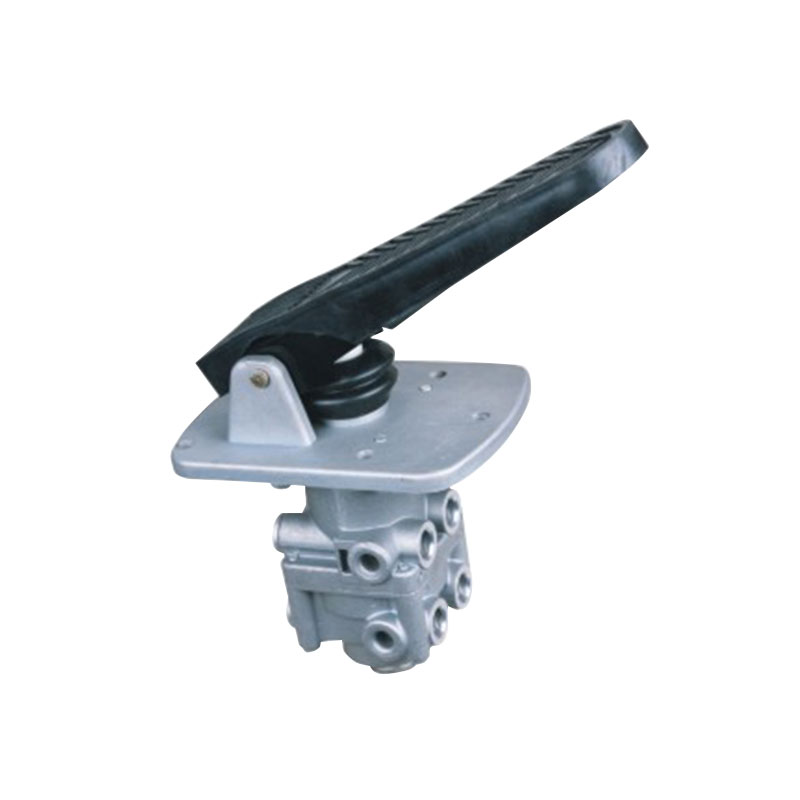

DX-80102 3514NY-010 Pedal type tandem

Performance parameters: 1. Maximum working pressure: 1.2MPa; 2. Rated working pressure: 0.85MPa; 3. Working temperature range: -40℃～80℃; 4. The pressure lead of the first loop to the second loop ΔP=30 (10, -20) KP; 5. Brake pedal is installed at the top.

Dimension parameters: 1. Installation dimensions: 148±0.2, 104.5±0.2, 97±0.2; 2. Inner diameter of mounting hole: 5-Φ9; 3. Inlet 11 and 12 thread: 2-M16×1.5-6H; Outlet 21 , 22 thread: 2-M16×1.5-6H; 4. Brake pedal angle: 26°
