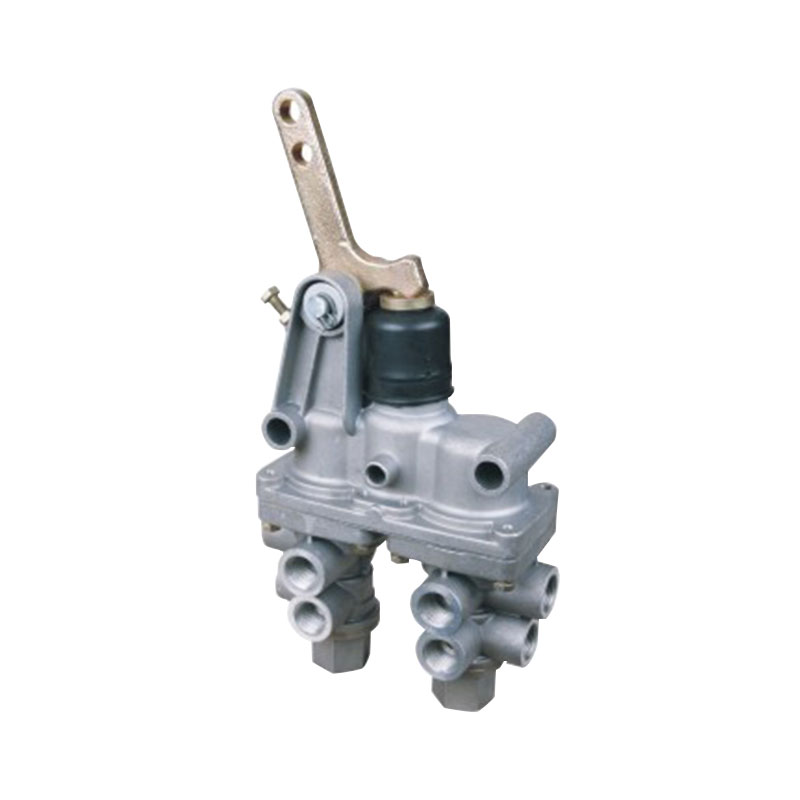

DX-80156 3514E-010 Double chamber brake valve

DX-80156 3514E-010 Double chamber brake valve

Zhejiang Orient Star Technology Co., Ltd.

Email: chance@bomeikettle.com Phone: 0086-0574-62021698 contact us

Product Details

Performance parameters: 1. Maximum working pressure: 2MPa; 2. Rated working pressure: 0.85MPa; 3. Working temperature range: -40℃～80℃.

Dimension parameters: 1. Installation size: 110±1; 2. Inner diameter of the installation hole: 2-Φ13; 3. Inner diameter of the top installation hole Φ10 (0.5,0): 4. Inlet 11, 12 port thread: 4-M18×1.5 -6H; Outlet 21, 22 thread: 4-M18×1.5-6H.
