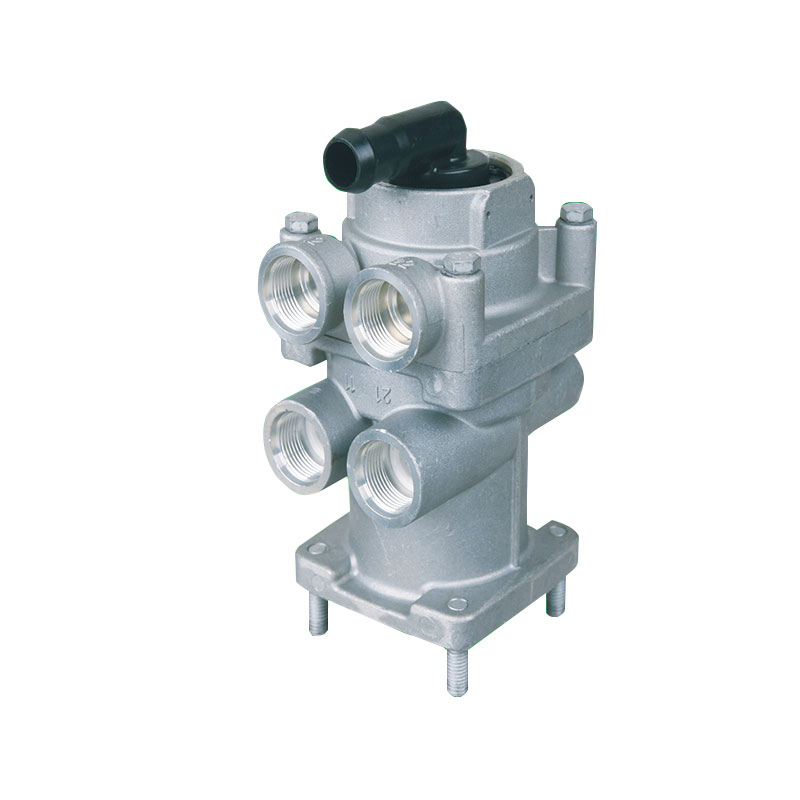

DX-85007 Golden Prince brake valve (pancreatic steam)

Performance parameters: 1. Maximum working pressure: 1.25MPa; 2. Rated working pressure: 1.0MPa; 3. Operating temperature range: -40℃～80℃; 4. The pressure lead of the first loop to the second loop ΔP=30 (10, -20) KPa.

Dimension parameters: 1. Installation size: 2-61±0.5; 2. Installation bolt thread: 4-M8-6g; 3. Inlet 11, 12 port thread: 2-M22×1.5-6H VOSS; Outlet 21, 22 port Thread: 2-M22×1.5-6H VOSS.
